Jaw Crusher vs Cone Crusher
Jaw crushers and cone crushers are two commonly used crushing equipment in mining and sand and aggregate production. They each have their own unique characteristics in terms of crushing principles, applicable scenarios, and production efficiency.
Working Principle Comparison
Jaw Crusher
Crushing Method: Utilizing the “compression + shear” principle, the movable jaw plate periodically moves closer and farther from the fixed jaw plate, crushing and discharging the material.
Motion Characteristics: Reciprocating motion, which is intermittent crushing with high impact force.
Application Stage: Primarily used for coarse crushing (the first stage of crushing), capable of handling large materials (feed size ≤ 1200mm).
Cone Crusher
Crushing Method: The movable cone performs a oscillating motion within the fixed cone, crushing the material through compression, bending, and shearing.
Motion Characteristics: Continuous rotational crushing, resulting in a smoother crushing process and high crushing efficiency. Application: Primarily used for secondary and tertiary crushing (second and third stages), with feed size typically ≤300mm.
Applicable Materials and Applications
Jaw crushers are more suitable for:
Coarse crushing of high-hardness materials (such as granite, basalt, and quartz stone);
Small and medium-sized production lines or mobile crushing stations (compact structure, low investment);
Applications with low requirements for output shape (such as roadbed aggregates and construction gravel).
Cone crushers are more suitable for:
Secondary and tertiary crushing of medium-to-high-hardness materials (such as iron ore, river pebbles, and diabase);
Large-scale production lines (high capacity, low energy consumption);
Applications requiring fine particle size (such as commercial concrete aggregates and manufactured sand).
Cost Comparison
Equipment Price: Cone crushers are 30%-50% more expensive than jaw crushers of the same specification. Cost of Consumable Parts: The jaw plate of a jaw crusher is cheap to replace; the mortar and crushing wall of a cone crusher are more expensive.
Overall Operating Cost: Jaw crushers are easy to maintain but have high energy consumption; cone crushers have low energy consumption but complex maintenance.
Typical Combination

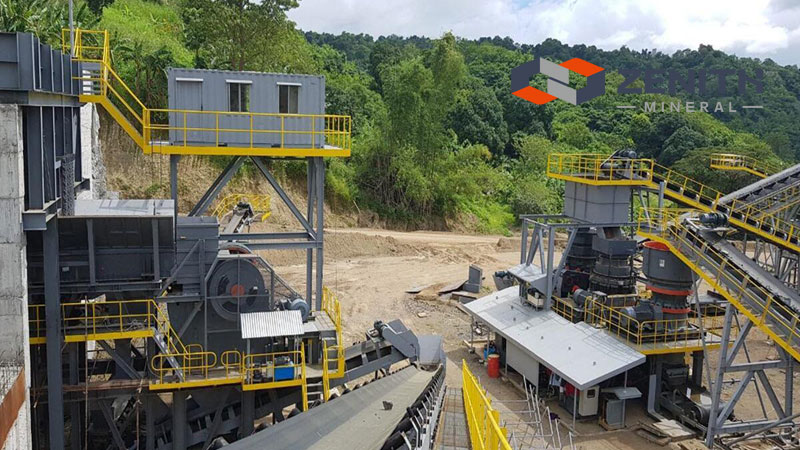

Two-stage crushing: Jaw crusher (coarse crushing) + Cone crusher (medium and fine crushing)
Three-stage crushing: Jaw crusher (coarse crushing) → Cone crusher (medium crushing) → Impact crusher (sand making)
How to Choose
Choose a jaw crusher: If you have a limited budget, high material hardness, large feed size, and low production capacity requirements.
Choose a cone crusher: If you seek high output, low energy consumption, uniform particle size, and can afford higher maintenance costs.
Note: If the material is highly viscous (such as a high soil content), a jaw crusher is less likely to clog; a cone crusher requires higher material purity.
Summary
Jaw crusher: Simple and robust, suitable for initial coarse crushing.
Cone Crusher: Fine and efficient, suitable for mid- to late-stage crushing. The actual model
selection requires a comprehensive assessment of material characteristics, production capacity requirements, investment budget, and long-term operating costs.
